SiC DC-AC Inverter

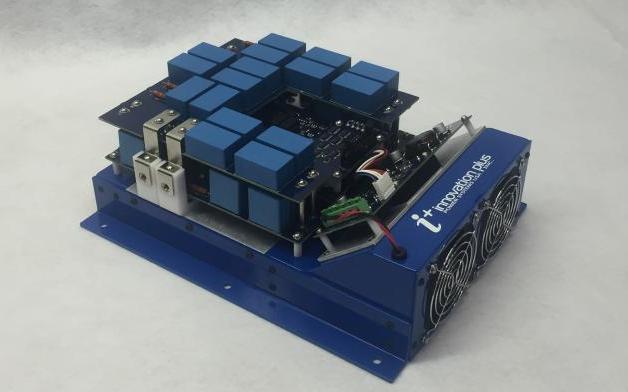

SiC Full Bridge DC-AC Inverter Assembly rated at 60 amps and 1200 volts. This customer ready high power design provides the following evaluation options:

· Use as is off the shelf



· IPPS can adjust components for optimal specific application performance

· IPPS can modify PCB designs to customer specific circuit

· IPPS can rescale the design for higher or lower power capability

· Compatible high efficiency PFC front-end available

· Suitable for rack mount applications

Product Specification
IRMS	60 A
VCES	1200 V
FSW, Maximum Switching Frequency	100 kHz
VDC, Maximum Capacitor input voltage	800 V
Bias Supply VDC Input	9 – 36 V
Bias Supply PMax	100 W
TA, Ambient Temperature Range	-20 to 50 °C
Cooling	Forced Convection
Weight	12 lbs
Size, (Height x Width x Length)	4-3/4” x 10” x 12-3/4”

Customer Interface Data

vOutput Current and DC Link Voltagemonitoring

vTemperature monitoring for each SiC module

vOutput Terminals ¼” Ring Lug Compatible

vInput Terminals ¼” Ring Lug Compatible

v Bias Supply Input DC Positive & Negative #8/M4 Ring Lug

Signal I/O

vConnector 20 Pin, 3M N3428-6202RB

v Digital Inputs:

o Drive – Phase A Upper, Phase A Lower,Phase B Upper, Phase B Lower

o Fan Off Control

o Fault Reset

vDigital Outputs:

o Fault All Status

o Ready Status

vAnalog Outputs:

o Current

o Voltage

o Voltage SiC Module Temperature

30 KW Nominal

Output Power

100 kHz Switching

Frequency

800 VMAX Input

Voltage

Adjustable Dead-

TimeControl and

DeSat detection

Customizable for

specific

applications
